Lock Nut

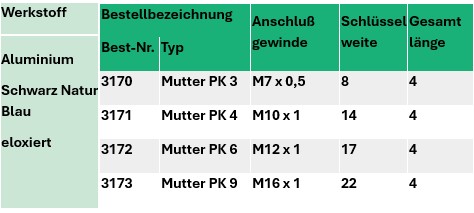

Dimensions and order numbers
Dimensions in millimetres. Please quote the order designation with enquiries.
| Order no. | Type | Connection thread | Across flats | Total length | Enquiry |
|---|---|---|---|---|---|
| 3170 | Mutter PK 3 | M7 x 0,5 | 8 | 4 | |
| 3171 | Mutter PK 4 | M10 x 1 | 14 | 4 | |
| 3172 | Mutter PK 6 | M12 x 1 | 17 | 4 | |
| 3173 | Mutter PK 9 | M16 x 1 | 22 | 4 |
