Push-in Nipple, Female Thread

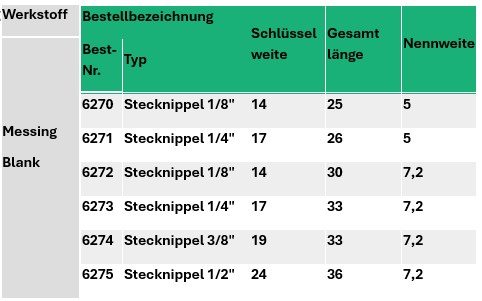

Dimensions and order numbers
Dimensions in millimetres. Please quote the order designation with enquiries.
| Order no. | Type | Across flats | Total length | Nominal width | Enquiry |
|---|---|---|---|---|---|
| 6270 | Stecknippel 1/8" | 14 | 25 | 5 | bright |
| 6271 | Stecknippel 1/4" | 17 | 26 | 5 | bright |
| 6272 | Stecknippel 1/8" | 14 | 30 | 7,2 | bright |
| 6273 | Stecknippel 1/4" | 17 | 33 | 7,2 | bright |
| 6274 | Stecknippel 3/8" | 19 | 33 | 7,2 | bright |
| 6275 | Stecknippel 1/2" | 24 | 36 | 7,2 | bright |
